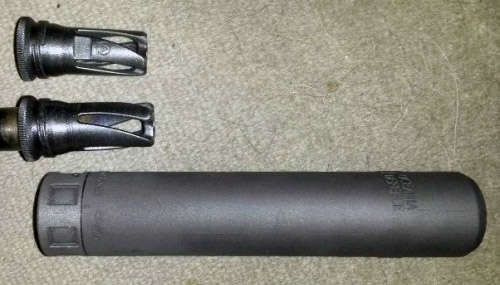

The 762 Ratchet Lock Titanium Suppressor uses the latest flow technology for the best sound reduction in the least size. Designed for 300 BLK in both sub and supersonic as well as AR10. The suppressor will also perform well on 762x39, 6.5 Creedmoor, 6.5 Grendel, 6.8 SPC and 5.56. The 762 RL attaches to a 91 tooth muzzle device (Included) using two ratchets to provide 180 tooth indents or 2 degree of rotational alignment.

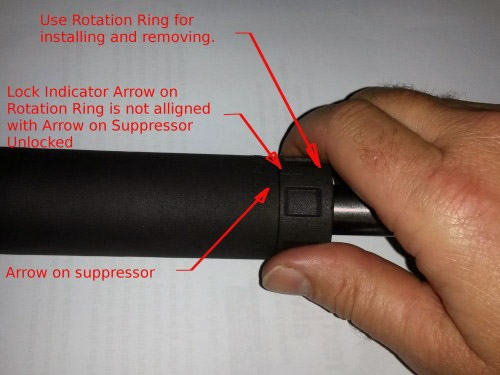

The suppressor mounts in about 3 seconds with 2 full turns of a ACME thread. As the thread starts to tighten against the conical seal, the rotation rings clicks into place which prevents the suppressor from unscrewing. To remove, twist the rotation ring until it clicks which unlocks the ratchet and keep turning to unscrew the suppressor. It is intuitive and effortless. It also prevents ratchet clicking noises when installing since the ring keeps the ratchet disengaged from the teeth during normal operation. If you want to hear the teeth, just put the ring in the locked position before installing.
The suppressor will perform much better on semi auto rifles with an adjustable gas block to reduce noise at the ejection port.
This suppressor is designed for jacketed bullets only.
Average multiple in house results of sound testing using BK2209 with BK4136 at 1 Meter left of muzzle and 1.6 meter high:
12" AR 300 BLK Barrel using 208 grain subsonic at 1053 FPS: 124
12" AR 300 BLK Barrel using 208 grain subsonic at 1046 FPS no suppressor: 158
12" AR 300 BLK Barrel using 110 grain supersonic at 2256 FPS: 137
12" AR 300 BLK Barrel using 110 grain supersonic at 2240 FPS no suppressor: 168
20" Rem 700 Barrel using 147 grain SA at 2597 FPS: 139
20" Rem 700 Barrel using 147 grain SA at 2584 FPS no suppressor: 168
14.5" AR 15 using M193 55 grain at 2887 FPS: 138
14.5" AR 15 using M193 55 grain at 2846 FPS no suppressor: 167
This suppressor is built from Ti6Al4V Grade 5 which is 90%Titanium, 6% aluminium and 4% Vanadium using a selective laser melting process. This process provides a completely monolithic structure for added strength with minimal weight. The suppressor is then stress relieved, heat treated and nitrided to provide a yield strength of around 1000 MPA and 1200 UTS. The internal structures have a 65 Rock C surface hardness due to the nitriding which drops back to 39 over the next 28 microns which increases the baffle longevity.
These are designed for semi auto use on any 762x51, 762x39 and 300 BLK supersonic or FA on 300 BLK subsonic.
