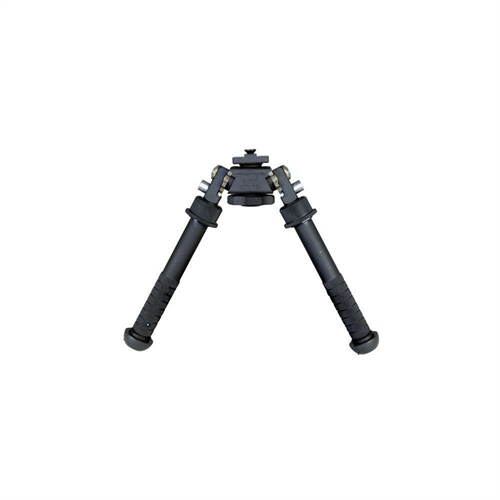

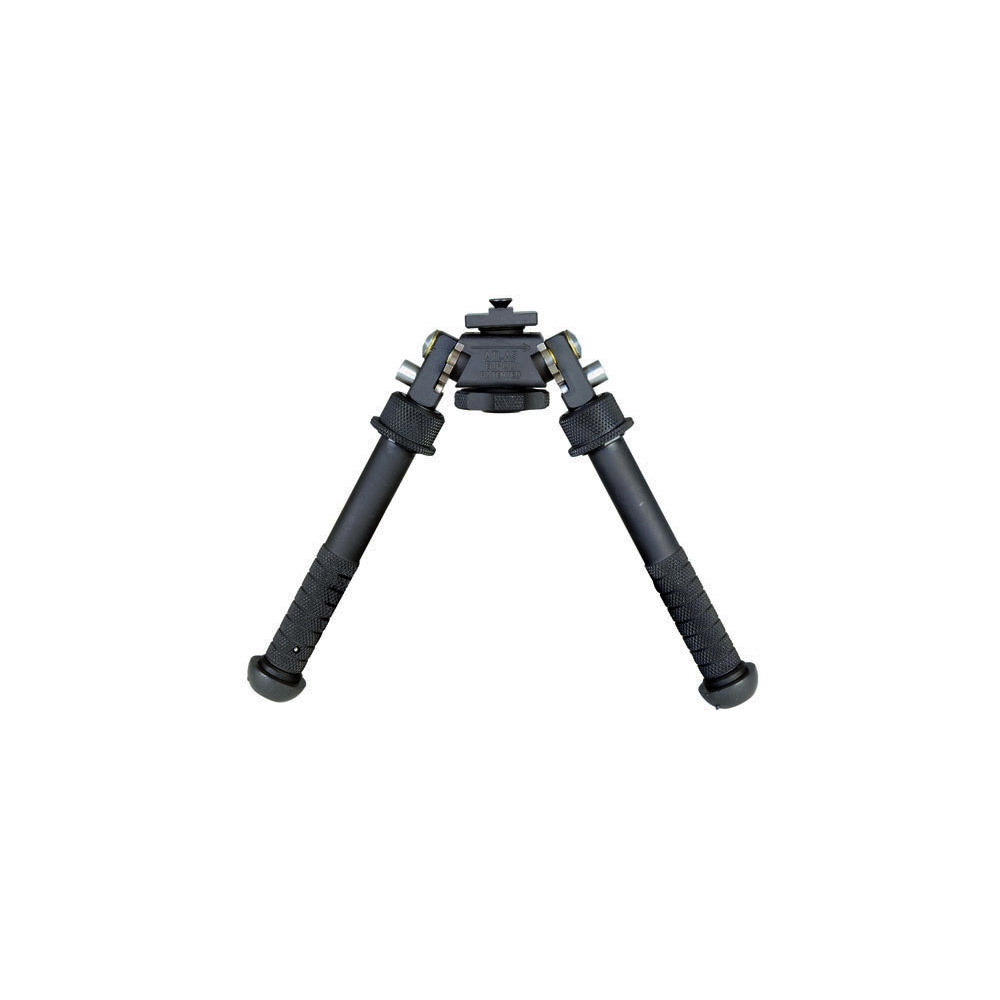

BT10-NC-No Clamp model which has a block that accepts any 17S size lever style mount to include the ADM-170-S, ARMS 17S , TRAMP from Badger Ordnance and LT271.
The BT10-NC also mounts directly to our AAIS Part # BT19 and Sako TRG mount (in R&D now).
Additional Technical Specifications
- No Clamp, takes any 17S lever mount and mounts directly to our Accuracy International and Sako TRG Style Spigot mount to be released soon.
- Construction from T6061 Aluminum, Hard Anodized black
- Stainless steel springs and fasteners
- UHMW components used for smooth tracking
- 15 degrees +/- of preloaded Pan
- 15 degrees +/- of preloaded Cant
- Preload on Pan and Cant can be tightened by means of the knurled knob
- Picitinny Rail Mount interface by either standard machine screw fastener based clamp or optional ARMS 17S lever mount.
- Non orientated leg positioning use either hand to move leg into any of the four leg positions
- Leg positions are; stowed back, 90 degrees straight down, 45 degrees forward and stowed forward.
- All 4 leg positions are solid allowing the shooter to load the bipod at the 45 and 90 degree positions.
- Non orientated leg length adjustment, Outer leg slides on the Inner leg locating on any of five positions ¾? apart and can be done by either hand.
- Optional 3? leg extensions to increase height available.
- Standard soft durable Rubber feet that are suitable for many surfaces.
- Optional interchangeable Ski and Multi Spiked style feet can be swapped in the field with the press of a ball plunger with a bullet tip.
- Optional mounting systems available for Accuracy International and Sako rifles.
- Estimated range of elevation on the BT10 is 5-9? from the surface up to the rail.
- Made in America
