Nightforce Reticle Information

Nightforce reticles are etched on precision multi-coated glass. This ensures exact alignment and eliminates breakage. All Nightforce scopes are equipped with reticle illumination that aids in creating the ideal contrast with the target regardless of the ambient light level. This type of reticle is substantially stronger than outdated wire reticles that may break or distort under extreme recoil or impact plus it allows the design of truly innovative reticles that would be impossible to create otherwise. If desired, Nightforce reticles can be changed at the Nighforce factory for a nominal fee.

Ranging Power Ring Settings

If your Nightforce rifle scope has a ranging reticle, the power setting for using the ranging features at their listed spacing, may be marked with an “R” on the power zoom ring. If no “R” marking is found then set it to the corresponding power zoom setting as shown in the chart below. All models are calibrated to give the specified distance spacing spacing at the following power zoom settings:

  • 1-4x @ 4x
  • 2.5-10x @ 10x
  • 3.5-15x @15x
  • 5.5-22x @ 22x
  • 8-32x @ 22x (R)
  • 12-42x @ 22x (R)

Nightforce NP-1RR Reticle

Major Functions

  • Easy ranging of the target in the field with no mathematical calculations.
  • Quick and accurate compensation for wind drift and bullet drop.

The NP1-RR ranging scale works on the principle of known size of the target in inches. The diagram above is a breakdown of the ranging scale: step, circle, baseline and yards. Distance from step to baseline (inside edges) = 18 inches. Diameter of circle = 9 inches. Distance from bottom of circle to baseline = 9 inches.

Examples:

  • Deer average 18–20 inches from brisket to shoulder.
  • Coyotes average 18–20 inches in height.
  • Fox average 10–12 inches in height.
    Prairie dogs average 9–10 inches standing.

The ranging scale remains effective in the field even with small variances in target size. You can recalibrate the ranging scale in your Nightforce scope for target sizes other than 18 inches and 9 inches. Decreasing magnification from specified settings will increase values of the ranging scale and bullet drop scale. Increasing magnification will have the opposite effect and will decrease values.

Example:

Recalibrating the ranging scale for a 20-inch target. Place a target 20 inches in height, exactly 300 yards away. Looking through the scope at the target, decrease the magnification until the inside edges of the step and the baseline bracket the target in the 300 yard column. Mark your magnification ring at this point to align with the indicator mark on the tube body. Your scope is now capable of ranging 9 inch, 18 inch and 20 inch targets, depending on the magnification you have the scope set on. This can be done for a wide range of target sizes if desired.

Suggested Use: Varmint, long-range hunting

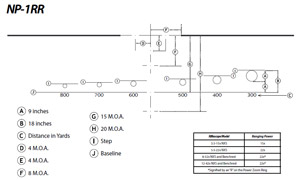

NP-1RR Reticle Close Up

Nightforce NP-1RR Reticle

Nightforce NP-1 Reticle

Superior to duplex reticles, this floating three-plex design utilizes all the functional elements of a duplex without unnecessary obstructions of your field of view at the 12 o’clock and 6 o’clock positions. Measured at 22x, a fine crosshair with a .080 M.O.A. subtension extends 4 M.O.A. from center and is bracketed by heavy bars at the 3 o’clock, 6 o’clock and 9 o’clock positions. The NP-1 directs your eye to center for quick target acquisition.

Nightforce owners and members of our own staff pick the NP-1 as their preferred reticle for traditional hunting.

Suggested Use: Big Game Hunting

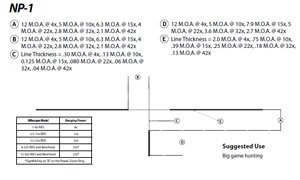

NP-1 Reticle Close Up

Nightforce NP-1 Reticle

Nightforce NP-R1 Reticle

The NP-R1 reticle provides the smallest graduations on the verticle line of any Nightforce reticle. The 1 M.O.A. elevation spacing and 2 M.O.A. windage spacing is ideal for precision long range shooting but also works well for benchrest or allaround use.

The uncluttered field of view in the four quadrants provides a clear image of the target and surroundings, without sacrificing the ability to use multiple holdover or windage points when needed.

The 1 M.O.A. spaced vertical “ladder” or the 2 M.O.A. spaced windage tics can be used for ranging objects of varied sizes rather than being locked into one or two dimensions. Whatever the known target height, you can usually determine the range by superimposing the reticle over the target and bracketing it between two points on the reticle. Any size target can be easily ranged using a simple formula: (target size in inches ÷ M.O.A. x 100 = range in yards).

Suggested Use: Field tactical, varmint, long-range hunting

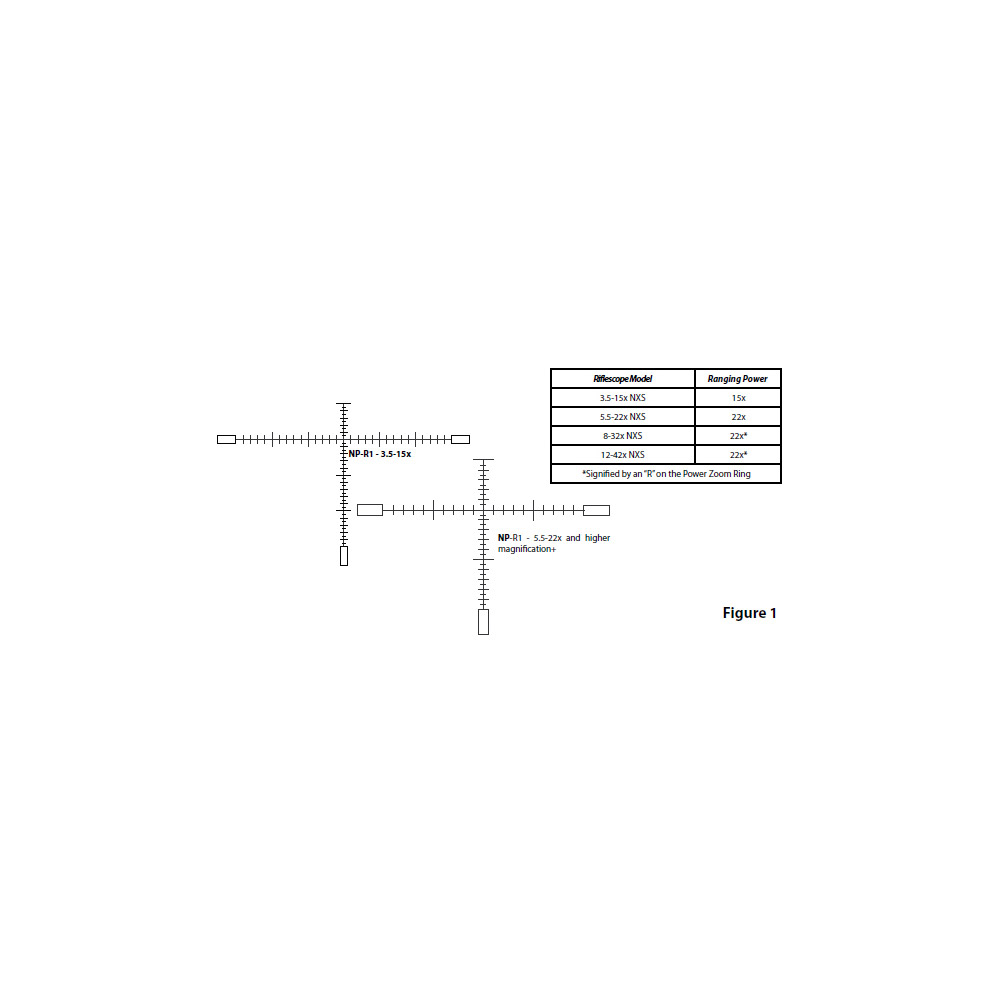

Note: The 3.5-15x models have additional lines on the vertical and horizontal axes with the NP-R1 reticle. See Figure 1.

Nightforce NP-R1 Compare

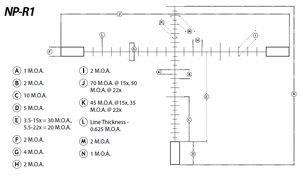

NP-R1 Reticle Close Up

Nightforce NP-R1 Reticle

Nightforce NP-R2 Reticle

The Nightforce NP-R2 is a performance-proven reticle designed specifically to enhance a shooter’s long range accuracy and ranging capabilities under a variety of field conditions. The NP-R2 allows the shooter to accurately range a target, utilize multiple zero points and select from numerous hold points to compensate for both windage and bullet drop.

Due to Nightforce’s illumination technology, the glass etched reticle glows red and can be illuminated at different intensities. This technology ensures excellent reticle contrast in low light when illuminated or a well-defined black reticle when not illuminated. In addition, the fine line subtension (area of target covered) makes this reticle ideal for long range applications. Using the latest advancements in laser etching the shooter is guaranteed consistent spacings and therefore accurate range estimation. What makes the Nightforce NP-R2 reticle truly unique. The vertical line of the NP-R2 reticle is divided into 2 M.O.A. increments (approx. 2 inches at 100 yards). These vertical increments are used for range estimation, multiple zero points and accurate bullet drop compensation.

Any size target can be easily ranged using a simple formula: (target size in inches ÷ M.O.A. x 100 = range in yards). Once range is determined select an appropriate hold point based on the bullet drop of your cartridge. The vertical spacings can easily be split into 1 M.O.A. increments further enhancing long range accuracy. The horizontal line is divided into equal 5 M.O.A. increments for windage compensation.

Suggested Use: Field tactical, varmint, Long-range hunting

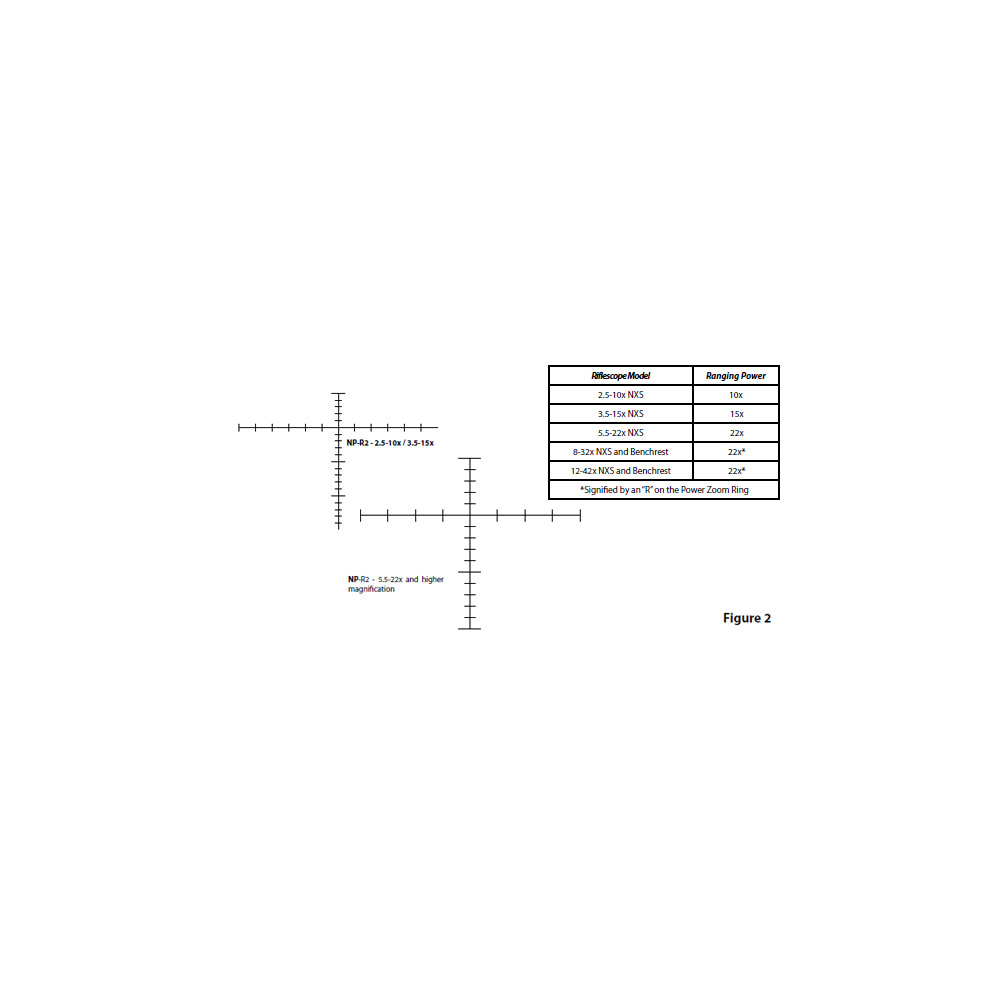

Note: The 2.5-10x and 3.5-15x models have additional lines on the vertical and horizontal axes with the NP-R2 reticle. See Figure 2.

Nightforce NP-R2 Compare

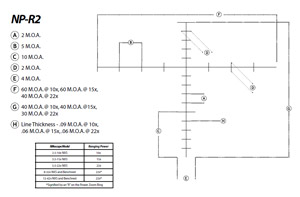

NP-R2 Reticle Close Up

Nightforce NP-R2 Reticle

Nightforce NP-2DD Reticle

Favored by two classes of shooter, the NP-2DD is the reticle most preferred for predator hunting in low light conditions. When measured at 22x, tapered horizontal bars reaching 4 M.O.A. from the center and a floating .1875 M.O.A. center dot draw the hunter’s eye to center for quick target acquisition with minimal illumination flare around the center aimpoint. This reticle is also highly functional for benchrest shooters when combined with Nightforce Precision Benchrest models. A secondary .125 M.O.A. diameter dot is located 8 M.O.A. below center at 22x. This dot is a 500-600 yard holdover point for most flat shooting cartridges. This simple and effective reticle performs in long range situations while maintaining quick target acquisition capability for short distances.

1,000 yard benchrest competitors prefer the NP-2DD reticle when selecting the 8-32x56 and 12-42x56 models in the Precision Benchrest series for its optimum dot subtension. The unobstructed field-of-view allows the shooter to observe the wind flags to detect a change of condition.

Suggested Use: Varmint, 1000 yard benchrest

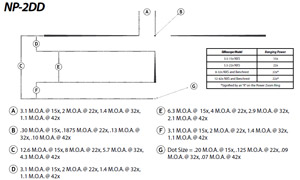

NP-2DD Reticle Close Up

Nightforce NP-2DD Reticle

Nightforce CH-1 Reticle

Designed for benchrest competition, the CH-1 reticle is a popular choice for a broad range of benchrest shooters. A subtension of .036 M.O.A. measured at 22x was selected after extensive research by Nightforce to offer competitors a reticle with an optimum subtension best suited for benchrest competition.

The CH-1 provides an unobstructed field-of-view, allowing the shooter to observe the wind flags to detect a change of conditions.

Suggested Use: Benchrest

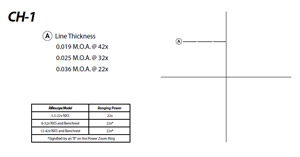

CH-1 Reticle Close Up

Nightforce CH-1 Reticle

Nightforce CH-2 Reticle

Designed for long range, high power competition, the CH-2 features a .200 M.O.A. dot on a .036 M.O.A. crosshair when measured at 22x. This .200 M.O.A. dot is calibrated for scored shooting on standard NRA high power competition targets. This reticle was designed in response to extensive research conducted by Nightforce with the cooperation of the world’s foremost high power competitors. Nightforce is proud the United States Army Marksmanship Unit has chosen the CH-2 over all reticles for high power competition.

USAMU’s use of this reticle in 5.5-22x56 NXS demonstrates Nightforce’s achievement in developing the best scope and reticle combination for the elite sport of long range, high power competition.

Suggested Use: High-power competition

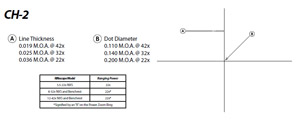

CH-2 Reticle Close Up

Nightforce CH-2 Reticle

Nightforce CH-3 Reticle

Designed for benchrest shooting, the CH-3 reticle features an extremely fine crosshair and dot.

This fine crosshair and floating dot creates the perfect long range benchrest reticle to compensate for mirage and wind conditions in 1 M.O.A. increments. Combined with a high magnification and variable power, the CH-3 allows the competition shooter to bracket the bullseye while maintaining a center aim point.

Note: Only the dot is illuminated on the CH-3 reticle.

Suggested Use: Benchrest

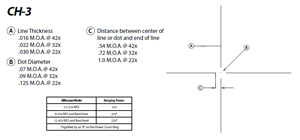

CH-3 Reticle Close Up

Nightforce CH-3 Reticle

Nightforce MLR Reticle

The MLR reticle is ideally suited for field tactical and long range applications.

The 1 mil and 1/2 mil divisions allow for multiple zeroes, holdover, hold-under and windage adjustments without touching the elevation or windage knobs.

Additionally, there are 1/4 mil marks at the 12:00 and 3:00 positions to aid in more precise range estimation.

This reticle along with the Mil-Dot works well with the optional Milradian Turrets.

Suggested Use: Field tactical, long-range hunting

MLR Reticle Close Up

Nightforce MLR Reticle

Nightforce Mil-Dot Reticle

Developed by the military, the mil-dot reticle allows the sniper to estimate the range to his target. The mil-dot is now the standard reticle found in law enforcement rifle scopes.

Advanced developments at Nightforce have resulted in the creation of a new style of mil-dot reticle. Rather than the solid dots that obscure most of the target, the Nightforce mil-dot reticle consists of see-through round dots which are placed on the vertical and horizontal cross lines that serve as reference points. In addition, all four posts are also see-through. Because both the dots and posts are clear, the target is no longer obscured. As a result, these features enable the sniper to more accurately estimate the range to his target.

The dots are spaced precisely 1 mil apart which represents 3.6 inches at 100 yards at specified power. The mil-dot design is etched on precision multi-coated compound glass. This eliminates breakage and misalignment of the reticle. Because of Nightforce’s illumination technology, the glass etched reticle glows red and can be illuminated at different intensities. This flexibility ensures excellent reticle contrast in low light when illuminated or a well-defined black reticle when not illuminated.

Suggested Use: Field tactical

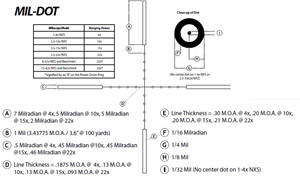

Mil-Dot Reticle Close Up

Nightforce mil-dot Reticle

Nightforce FC-2 Reticle

Created for close to medium range use in military, law enforcement or hunting applications, the FC-2 provides a highly visible naturally centering aiming point. The center dot gives a finer aiming point and the larger circle a wider zone for fast or moving shots.

The triangular aiming point under the circle can be used as a 10 M.O.A. holdover point from the center dot, and as a ranging tool in combination with the circle and dot.

The tapered horizontal lines on either side lead the eye to the center of the reticle and provide good contrast against the target in low light situations and with cluttered backgrounds.

This reticle is the number one choice on the 1-4x NXS.

Note: Only the center dot and surrounding circle illuminate with the FC-2 reticle

Suggested Use: Hunting, CQB

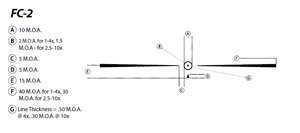

FC-2 Reticle Close Up

Nightforce FC-2 Reticle

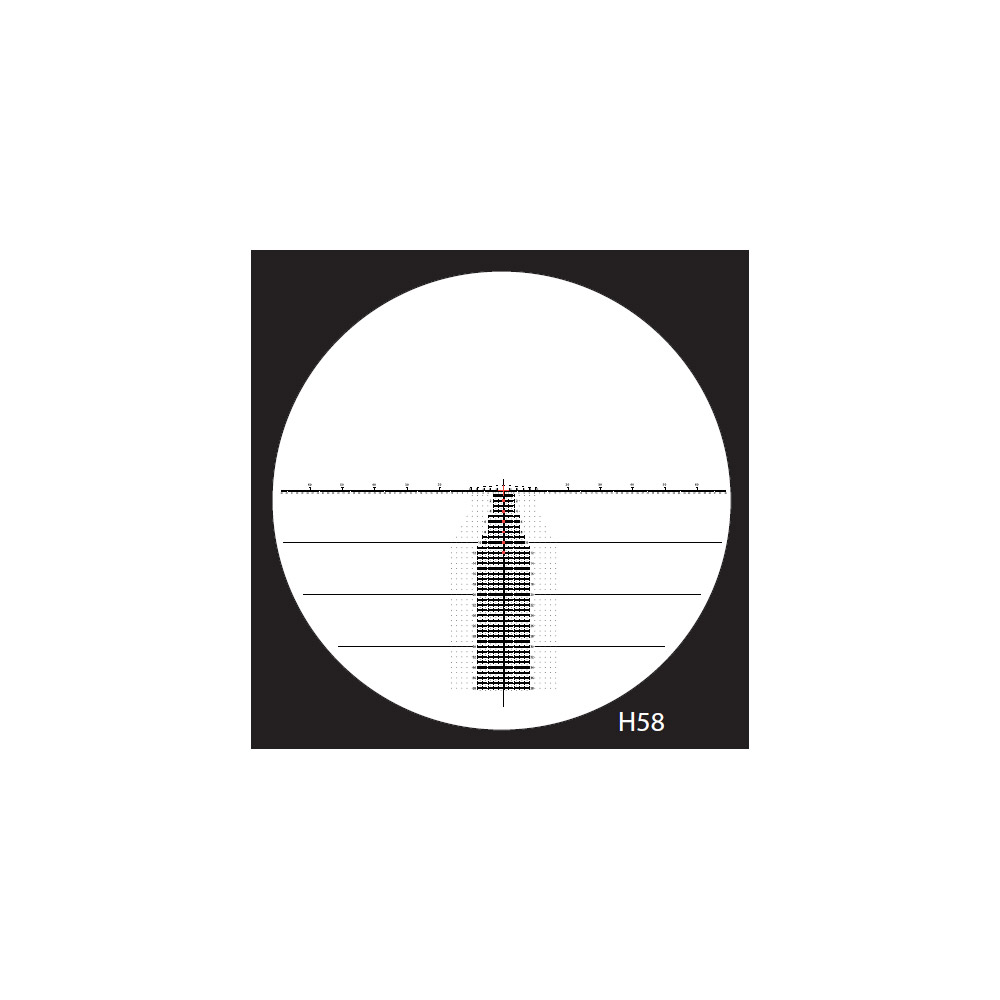

Nightforce Horus H-58 Reticle

Nightforce Horus H58 Reticle

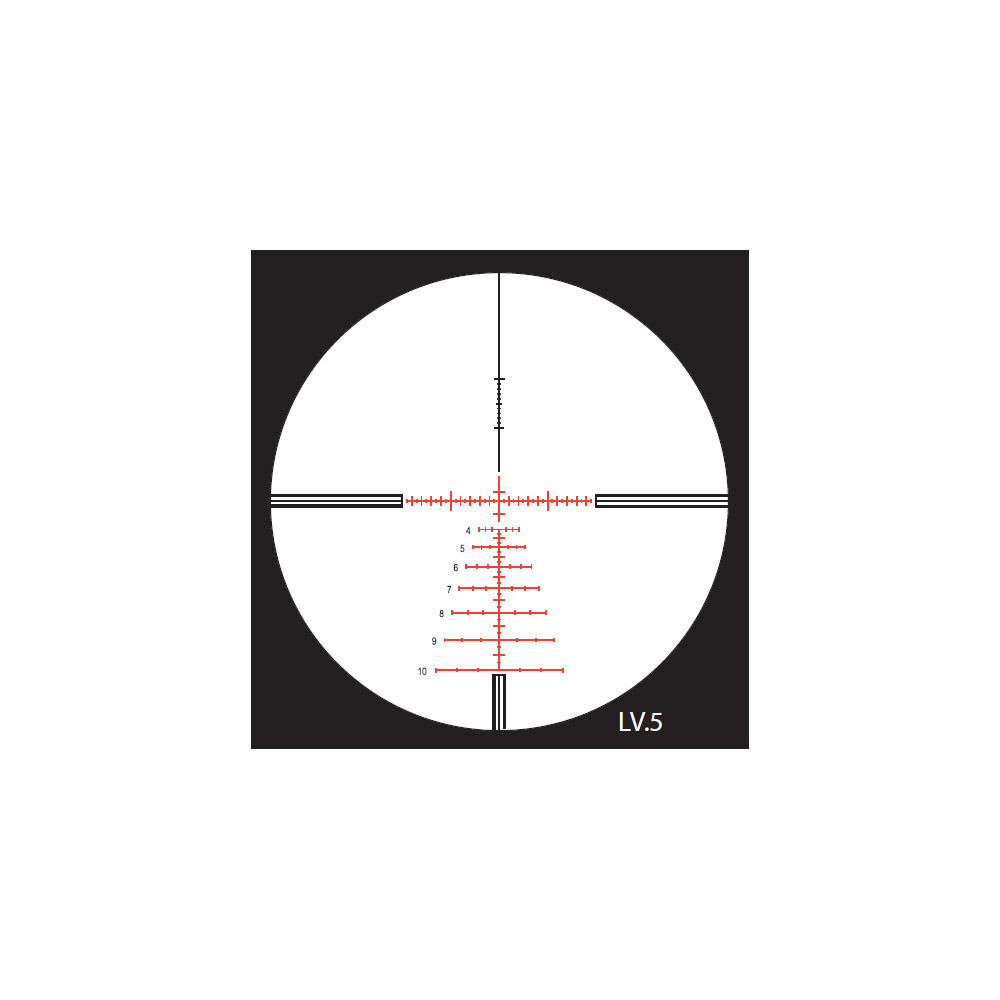

Nightforce LV.5 Reticle

Nightforce LV.5 Reticle

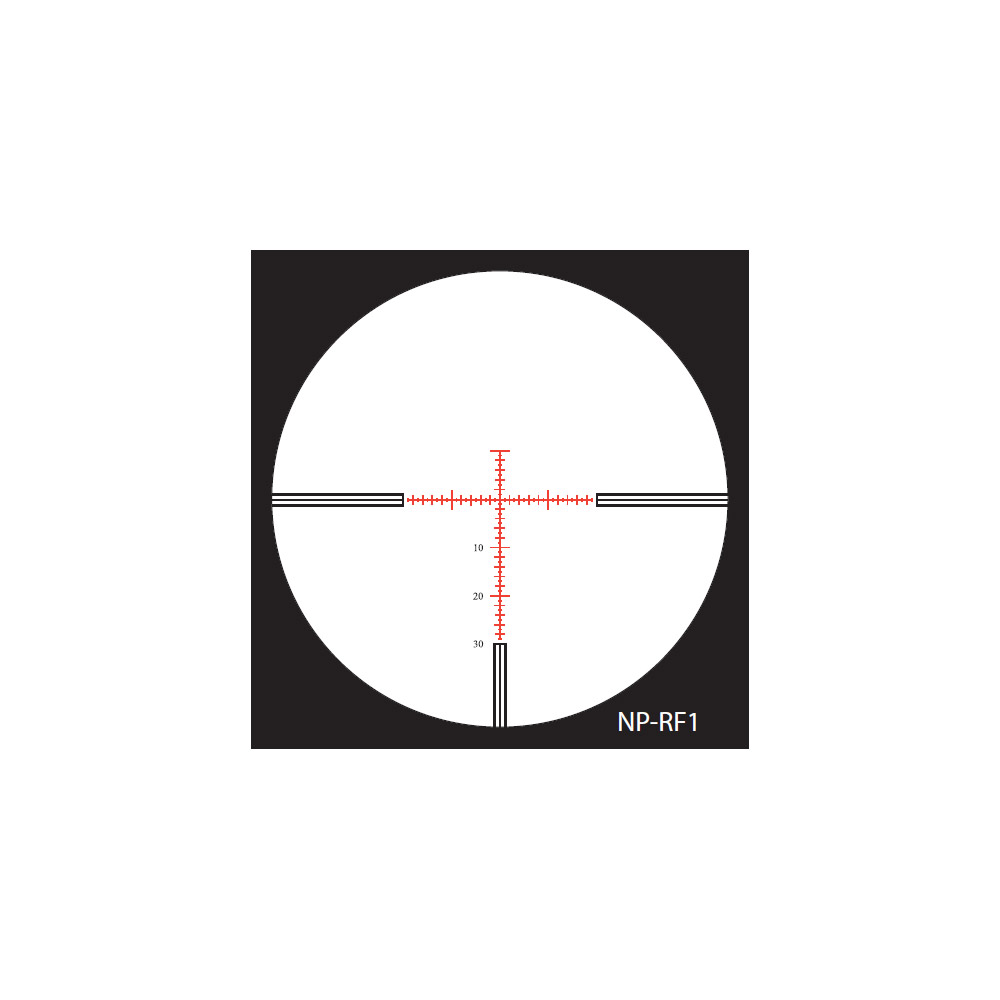

Nightforce NP-RF1 Reticle

Nightforce NP-RF1 Reticle

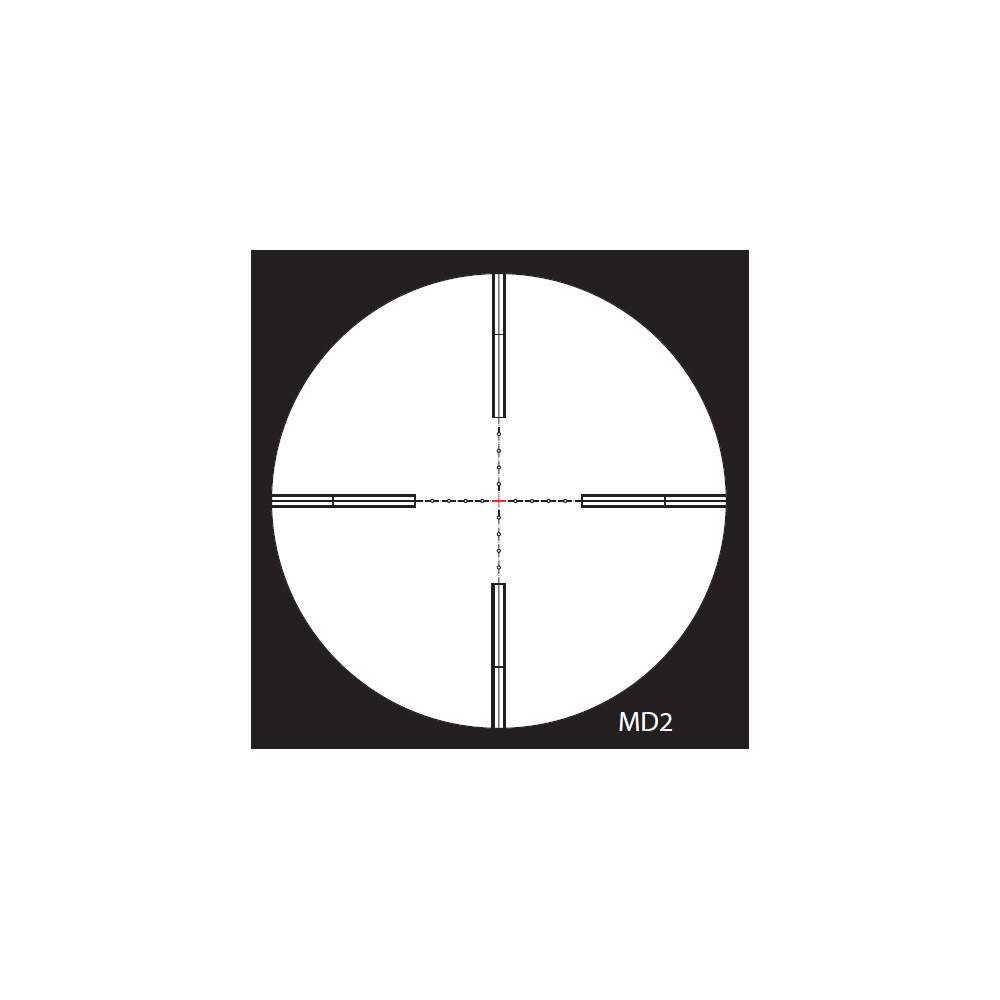

Nightforce MD2 Reticle

Nightforce MD2 Reticle

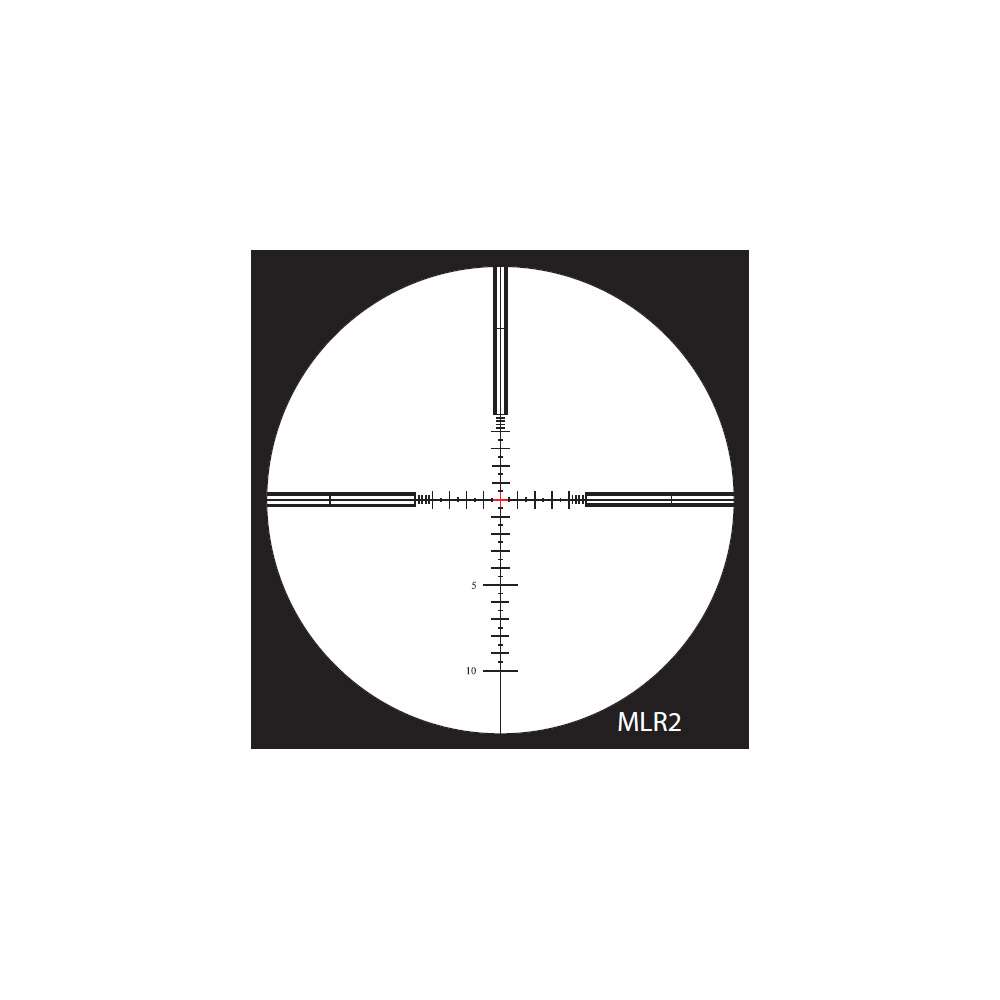

Nightforce MLR2 Reticle

Nightforce Mlr2 Reticle
