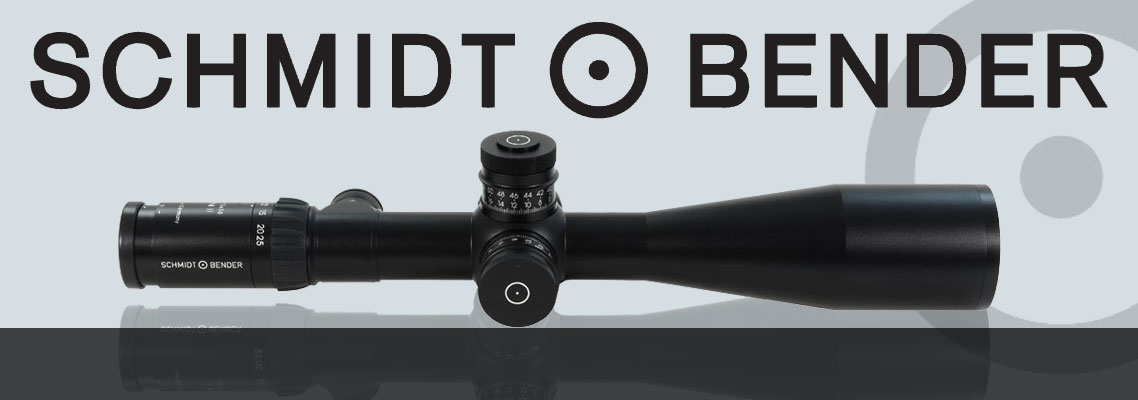

The unique feature of this scope is turret design. Commonly referred to as the PSR (Precision Sniper Rifle) turret, it was designed specifically to the requirements of SOCOM (US Special Operations Command) for target interdiction to 1500 meters and beyond. It features tactile clicks at each .1 MRAD and a more pronounced feel at every full MRAD or ten clicks in the case of MRAD scopes. When the turret moves to it's 2nd revolution a round rings rises on the top of the turret allowing the shooter to feel that he is in the 2nd revolution. Both windage and elevation turrets offer a locking ring which prevents inadvertant turret movement after the scope is adjusted.
- Hard anodized black surface
- Illuminated reticle in first focal plane unless specified otherwise
- Elevation increments: 1cm (0.1 Mrad) or 1/4 MOA per click
- Elevation range: 0-260cm (0-26 Mrad) or 64 MOA @ 100m
- Windage increments: 1cm (0.1 Mrad) or 1/4 MOA per click
- Windage range: ±60cm (±6 Mrad) or ±14 MOA
- Weight: 1150 g (40.5 oz.)
- Reticles available: Horus H37, H59, Tremor 2, H2CMR, MSR, P4 Fine, P4 Fine MOA
Schmidt Bender MTC Locking Turret Instructions
